Partcaster Gallery

My Guitars

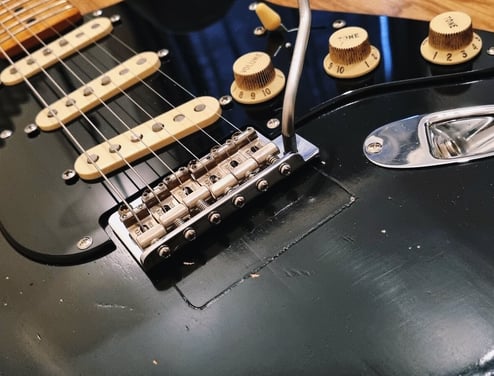

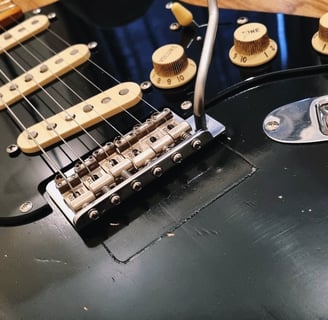

David Gilmour Black Strat Replica

BODY: Franchin Italy Custom Relic body Nitro Lacquer
NECK: Fender Classic 50's Nitro | 7.25" |Jescar Jumbo SS Frets
KNOBS:/COVERS: Standard Fender Aged White, (aged)
PICKGUARD: Black Acrylic with Round beveled Edges
ELECTRONICS: 7-Way 3X Bourns 250K Audio taper pots | Luxe 0.5 50V Dime cap
PICKUPS: Fender Fat 50's in neck, CS69 Middle and Duncan SSL-5 Bridge
TREMOLO: Fender Pure Vintage Tremolo | Reliced, Shortened Arm
TUNERS: Gotoh SD91 Staggered Tuners

Bought a used tribute Black Strat in 2019 that was a MIM with 2-point tremolo. Never quite bonded with it so i sold everything except the pickups and decided to rebuild it. This time as a more exact copy than the tribute one.

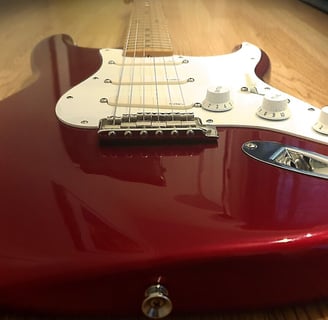

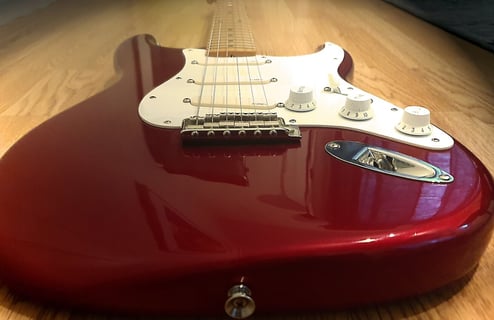

David Gilmour 57 Reissue Tribute Candy Apple Red

BODY: American Special 2010 Candy Apple Red
NECK: Classic Player 50´s Neck 21 Med Jumbo Frets
PICKUPS: EMG DG-20 Active Pickups Kit on custom pickguard
TUNERS: Gotoh SDS 510 Vintage Tuners
TREMOLO: Callaham Vintage Narrow with/ Highwood Saddles

First Partcaster i built. Gilmours 57 Reissue from the 80's and 90's that he used on the Delicate Sound of Thunder and PULSE tour.
It was the most sexiest guitar i have seen.
This guitar was eventually parted up and sold but i kept the neck that i really loved. but i will rebuild it one day again.

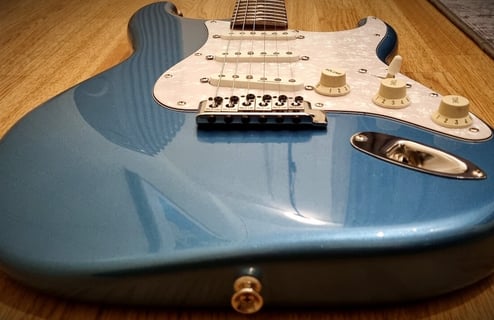

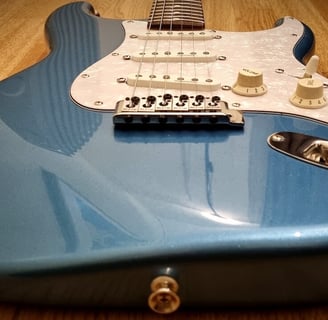

The Shadowsky

BODY: Sadowsky Metro Line Tokyo S-Style
NECK: Fender Japan ST-62 Dex2 Rosewood with Jescar SS 51100 Frets.
PICKUPS: Kinman Impersonator 54 aka (Kinman Hank Marvin Set)
PICKGUARD: Pearly White 11-Hole
TREMOLO: Original Tremolo with Wilkinson WLS130 Locking Saddles
TUNERS: Kluson Göldo Double Line (Gotoh SD91 Manufactured)

Got a loaded Shadowsky body with the Kinmans for incredible $300. The color is funny, on photo it looks Lake Placid Blue, but its more greenish turquoise in real life.
Built up with a Japan neck i had. Nice thicker "C".
These Kinman pickups are the best noiseless PUs i have heard period.
The guitar remains my most modern guitar, but i also keep it open for modification and as a test platform for new hardware. A bold and cool Japanese Mojo guitar. The name Shadowsky is a combination of "The Shadows + Sadowsky"

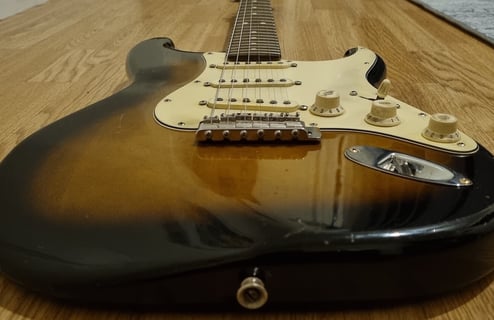

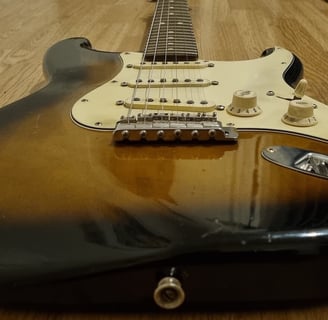

The JV Partcaster

BODY: JV Squier Vintage '57 ('82 or '83) 2 tone Sunburst w/ thin Polyester finish
NECK: Temporarily has the Classic 50s neck from the Gilmour 57 Reissue.
PICKUPS: Pure Vintage Limited Edition '54 Pickups
BRIDGE: USA 1982 AVRI Tremolo Vintage Spacing.
PICKGUARD: Mint Green Fender naturally aged.
TUNERS: Gotoh SD 91 with White Buttons
WIRING:
- Standard cloth wiring with Tone adjust for Bridge PU-mod.
- .050 Ceramic Dime Cap. I removed the Treble Bleed.
- CTS Standard Audio Taper Vol. 250k / Tone pots are both 500K

This Guitar was owned by Alexander Hodnevik from the now defunct band: Comet Kid. It has seen thousands of hours in the studio and concerts. Loved the aged look and bought it. Came with Jazzy Cats from Klein and had a CBS Mazak bridge.
Currently with a temporary neck. Had a Am.Prof neck on it but sold it. The idea is to order a custom Musikraft neck and put it on.

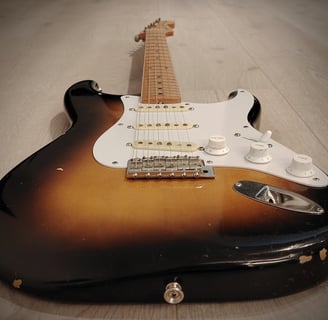

1983 JV Squier

MODEL: Fender Japan JV Squier ST 52-65 1982
BODY: Two Tone Suburst with hand routed SP cavity route
NECK: Maple with Original Vintage Frets
PICKGUARD: Repro white 8-hole 1.5mm One-ply
KNOBS: White Small Letter Volume Knob Original / Repro Tone knobs.
MID & NECK PU: Original Japan Pickups
BRIDGE PU: Fender '57/'62 pre-98 Enamel
POTS: Original Pots (Pot code 27K)
WIRING: Standard, new cloth leads and new Switch
BRIDGE: Original Synchronized 6-Screw and Steel block.
TUNERS: Retrofit Aged Gotoh SD91

Bought it for a nice price from a owner who bought it in London in 1983. The guitar has been modified over the years with humbuckers and has gained a full swimming pool route. It has now reverted back to factory specs as the original pots and original two pickups came with it. Decal was also replaced as it was mostly flaked of. Needs a refret down the line.

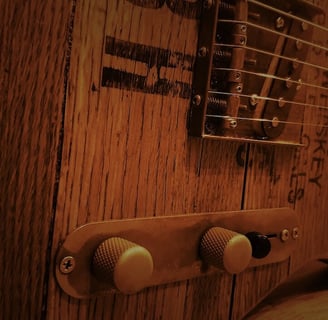

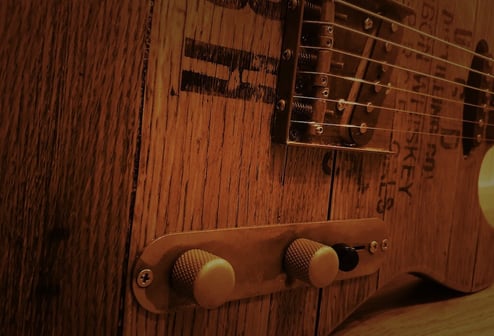

Burboncaster Tele

BODY: Waldrop Texas custom Oak whiskey barrel top with Cedar Body.
NECK: Fender VINTERA Roasted Maple Mod 50s | 9.5", C-Shape 21 Medium Jumbo Frets.
WIRING: Emerson Custom 4 Way Wiring Harness
PICKUPS: Q-Pickups DG Workmate Replica pups
TUNERS: Gotoh SD91 Reliced
BRIDGE: Bill Lawrence USA T2 Black Label Aged Copper Telecaster Bridge 464 hz Tuned
CONTROL PLATE / NECK PLATE: Made by myself.
ADDITIONAL PARTS: Provided by Axerus.co.uk

My first and only Telecaster build that i wanted to be out of the ordinary. Got a cool body from Paul Waldrop who specialize in reclaimed wood bodues.
Telecasters are not really my prefered guitars, although i love how they sound and what sound they can provide, i ended up selling it because of very little use.

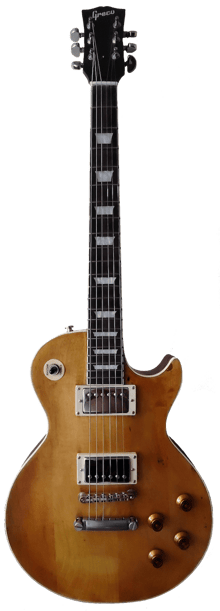

1978 Greco Les Paul

BODY & NECK
GUITAR: August, 1978 Greco EG-Series Les Paul model | Serial# H787100
NECK: Nice Standard "C" 3-Piece Mahogany i think.
FRETBOAR: Replaced 24.75" Scale Rosewood with Pearloid Trapezoid Inlays from Ebay
RADIUS: 12"
FRETS: Musiclily Stainless LP Type Frets (Great Frets and Cheap)
BINDING: 2mm Cream Binding (Replaced) from Forrest Guitar Supplies
HEADSTOCK: New Faceplate: 2 Layer of 0.5mm Blackwood
DECAL: Repro Faux-Pearloid decal from CCDecals on Etsy

HARDWARE:
BRIDGE: Standard Metric ABR-Bridge + Tailpiece Studs from Philadelphia Luthier
TAILPIECE: Original Steel Tailpiece. Sanded down and lacquered clear.
PLASTIC: from MusicLily (They have decent parts you know :)
KNOBS: Amber Bonett knobs from Philadelphia Luthier
TUNERS: Wilkinson Roto-Matic Grover replicas. (Quite good tuners)
NUT: Bone nut from Japan trip :)

ELECTRONICS:
PICKUP: Temporary Alnico 5 Pickups from Here
POTS: CTS Longshaft 500K (All Audio Taper)
WIRE: Standard Gibson shielding braided + 5Core Wire to Switch
CAPS: SCR MKP 0.047uF
SWITCH: Original Switchcraft Type
WIRING: 50's Vintage Wiring. Standard

Bought this in poor condition with the intent of completely refusrbish it. Was stripped for all hardware, electronics and binding and built up with new Rosewood fretboard. As an avid Peter Green fan, it will soon be equipped with proper out-of-phase humbuckers.
